Keypad Length Selection
Choose the tape length needed for the carton using the machine's electronic controls.
Electric water-activated tape dispenser

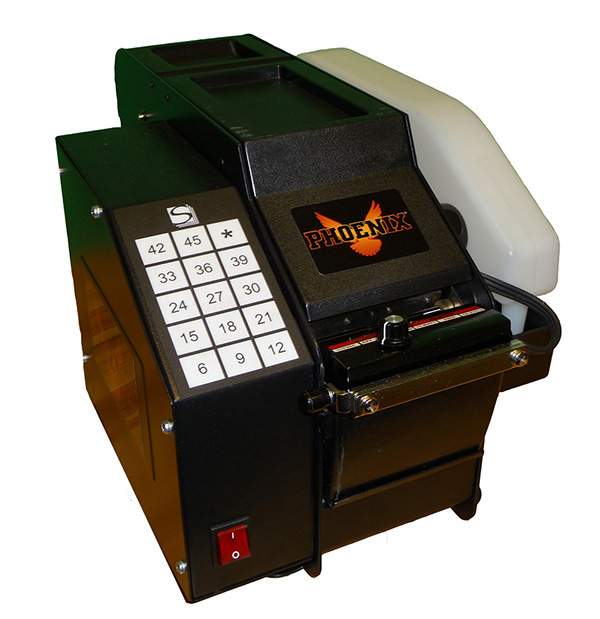

Phoenix E1 (PE1) Tape Dispenser
The Phoenix E1 is an electric gummed tape dispenser designed to feed, moisten and cut measured strips of water-activated tape for sealing corrugated cartons.
With an LED display and keypad-operated length selection, the PE1 is a straightforward choice for packing stations handling different carton sizes. Select the desired tape length and dispense a consistent strip when needed.
Machine features
Measured Tape Dispensing for Everyday Carton Sealing
The E1 automates tape feeding, moistening and cutting, helping operators prepare repeatable strips without manually measuring and tearing tape.
LED Display
The PE1's electronic display supports clear tape-length selection during operation.
Measured Tape Lengths
The manufacturer lists selectable lengths from 6 to 45 inches for different carton sizes.
Triple-Brush Moistening
The original E1 specification describes a three-brush system for wetting the tape's adhesive.
Top Heater
The original E1 design includes a top heater to assist adhesive activation at the moistening area.
Automatic Cutting
The machine cuts each dispensed strip so the operator can apply it to the carton.
How it works
Simple Electronic Tape Dispensing
Load a compatible roll of water-activated paper tape, fill the water bottle and set up the moistening system according to the operator guide. Choose the required tape length on the electronic controls, then dispense a moistened strip for carton sealing.
The E1 is suited to workstations where an operator wants electronic length selection without the E2's hands-free photoelectric trigger. For photo-eye activation, see the Phoenix E2. For more advanced programmable functions, explore the Phoenix E4 Elite.
Phoenix E1 at a Glance
- Model: Phoenix E1 / PE1
- Electric water-activated tape dispenser
- LED display and keypad controls
- Measured dispensing from 6 to 45 inches
- Moistening and automatic cutting
- For corrugated carton sealing
Technical details
Phoenix E1 Specifications
The tape-length range is confirmed on the manufacturer's current PE1 listing. The remaining figures are from the original PhoenixTapeMachines.com E1 page and should be verified for the particular machine version.
| Tape Length Range | 6 to 45 inches |
|---|---|
| Dispensing Speed (original listing) | Up to 40 inches per second |
| Tape Width (original listing) | 1½ to 3 inches |
| Maximum Roll Diameter (original listing) | 8 inches |
| Water Bottle Capacity (original listing) | 1 liter |
| Electrical Requirement (original listing) | 120V AC |
| Shipping Weight (original listing) | 32 lb |
Machine dimensions are omitted pending verification. Check the machine label or current manufacturer documentation for electrical requirements and model-specific specifications.
Documentation and service
Phoenix E1 Manuals, Setup & Repair Resources
The manufacturer maintains operator information, E-Series parts books and maintenance resources for Phoenix tape dispensers.
Illustrated Electronic Parts Diagrams
Explore eight illustrated electronic dispenser parts views on this website, including the motor, controls, and tape basket.
Explore parts diagrams →Manufacturer Setup Videos (external)
Find manufacturer demonstrations for unboxing and setting up the Phoenix PE1.
View setup videos →Maintenance & Repairs
Review guidance for brush cleaning, cutters and other E-Series service tasks.
View repair resources →Illustrated parts reference
Phoenix Electronic Dispenser Parts Diagrams
Browse illustrated views of electronic Phoenix tape dispensers, including the motor side, controls, tape basket, and components under the top cover. These diagrams are provided as a general parts-identification reference; confirm compatibility with your specific E1, E2, or E4 before ordering.
Motor Side
Start with the motor-side illustration and navigate to the other electronic parts views.
Explore electronic parts diagrams →Electronic Controls
Examine the electronic controls illustration and related views.
View controls diagram →All Electronic Parts Views
See the complete set of eight illustrated reference pages.
